Wood cutting machine

BCM2137C ATC cnc router is specialized for woodworking It is designed with auto tool changer which can change tools automatically We aopt high end specifications to ensure the machine fantastic stability and high accuracy.

CNC router configurations

CE Standard
Working table 2100*3700*200mm
ATC linear tool changer system (with 8 tools)
9.0kw HSD air cooling spindle
Delta inverter
Dleta servo motor and driver
X, Y axis alloy hard-toothed surface rack and pinion, Z axis Taiwan TBI ball screw transmission
Syntec6MB control system
Movable high precision positioning cylinder ( X: 2pcs+ Y: 1pcs)
Working center system (8 pcs of tools)
Automatic oiling system with 8 tool changers
Schneider electronics from German
limit switch
Vacuum table
5.5kw vacuum pump

Technical Parameters:

Working area	2100*3700mm
Traveling speed	25004550250mm
Machine weight	2800kgs
Traveling speed	60m/min
Working speed	20m/min
Spindle parameters	9.0kw ATC
Controller	Syntec 6MB
Driving system	X,Y axis servo+Z axis brake servo
Working voltage	AC380V/3 PH/50Hz
Electronic accessories	Taiwan Delta VFD/Schneider low voltage electrical components/ high quality cable
Transmission system	Hardened lapped rack and pinion in X,Y axis+ Taiwan ball screw in Z axis
Positioning mode	Positioned in three points by portable high precision positioning cylinder + portable positioning blocks
Table structure	Double adsorbable countertops, material in HPL, large suction by slots
Tool magazine	8 tools with linear type tool magazine
Lubricating system	Automatic lubricating system
Safety system	Over travel protection/scram protection/ limit location/Air pressure alarm/safety protection guard/design scheme/electric protection
Vacuum system	5.5kw vacuum pump

Our Products

Wood cutting machine

Wood cutting machine

CNC router configurations

Technical Parameters:

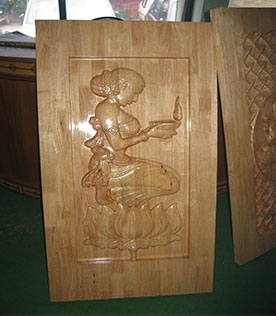

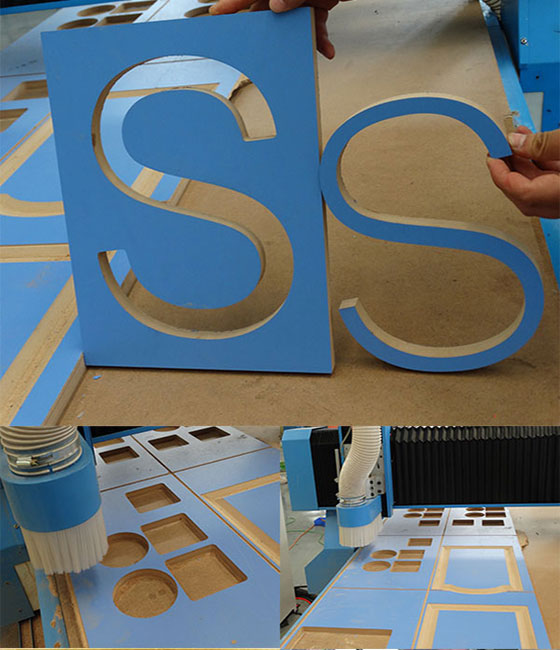

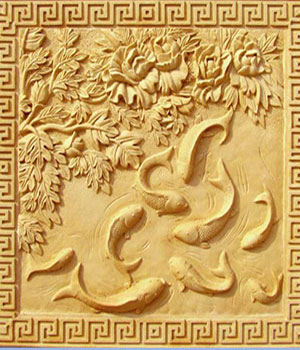

Sample Images:
