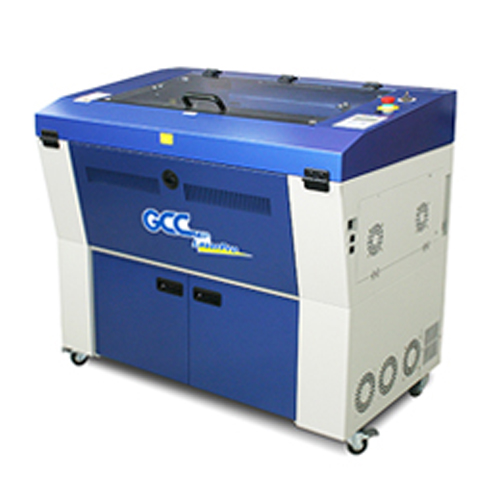

LaserPro Spirit is designed with the operator in mind and carrying various innovative features, reliable mechanics, and excellent output quality. LaserPro Spirit is the missing piece in your operations puzzle, putting you on track for continued growth in your engraving and cutting business!
| Spirit | |
|---|---|
| Work Area | 25 x18 in. (640 mm x 460 mm) Extendable to 29x18 in. (740 x 460 mm) |
| Max. Part Size (W x L x H) | 30 x 19 x 6.5 in. (762 x 482.6 x 165 mm) |
| Table Size | 31.1 x 20.9 in. (790 x 530 mm) |
| Dimensions (W x L x H) | 44.3 x 28.3 x 39.6 in. (1125 x 720 x 1005 mm) |
| Laser Source | 12 to 100W 10.6-μm sealed CO2 Laser / 20W & 60W 9.3-μm sealed CO2Laser |
| Cooling | Air-cooled, Operating environment temperature 15o - 30oC (60o - 86oF) |
| Drive | Closed-loop DC Servo control |
| Maximum Motor Speed | 60 IPS |
| Throughput* | 245.5 in²/ hr (1584 cm²/ hr) |
| Throughput* with SmartACT Enabled | 283.4 in²/ hr (1828.8 cm²/ hr) |
| Speed Control | Adjustable from 0.1-100% of 60IPS (Up to 16 color-linked speed settings per job) |
| Power Control | Available from 0~100% (UP to 16 colors linked power setting per job) |
| Engraving capability | 256-level gray scale image processing capability |
| Distance | 0.254mm or 0.1% of move, whichever is greater |
| Z-Axis Movement | Automatic |
| Focus Lens | Standard 2.0", optional 1.5", 2.5" & 4.0" available |
| Resolution (DPI) | Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500 |
| Computer Interface | 10 Base-T Ethernet, Full speed 2.0 USB |
| Memory Buffer | 32MB standard |
| Compatible Operating Systems | MS Windows |
| Display Panel | 4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus |
| Safety | Class I Laser Product Compliant with EN60825 Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance | Operation Voltage | Laser below 80Watt, 100-240VAC, 50-60Hz Auto Switching, Max. 15A; Laser 80Watt and above, 200-240VAC, 50-60Hz, Max. 15A |
| Fume Extraction System | External exhaust system is required, 4-inch connection port on the back of machine |
Nonwoven fabric photo frame by laser engraving and cutting
EPE Cutting
Double Color Sticker Application
Photo Engraving with Dithering Pattern
Packaging cutting
Twill Cutting with X-Series
Food Engraving
Embossing seal with laser engraving
Metal Engraving with LaserInk
Customized Tambourine Engraving
Engraving Product Label
Personalized Clock Application with CCD device
