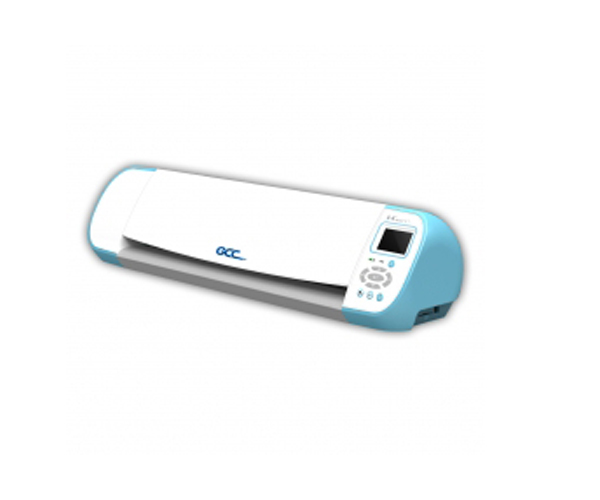

I-Craft

Turn your creativity into real business. i-Craft™, a portable desktop cutting plotter with the highest cutting force and cutting speed, ideal for micro-business, startups, schools, restaurants, offices and stores. Enter the business with affordable initial investment, as its ease of use interface, ready clipart, precise and versatile cutting capability and AAS II contour cutting module which creates the most possibilities in iron-on, display, packaging, rhinestone decals, labels, fabric, and more

Product Specification:

i-Craft™
Operational Method	2Roller-Type
Max. Cutting Width	30.5 cm (12"))
Max. Cutting Length	up to 1000mm
Max. Media Loading Width )	330 mm (13")
Number of Pinch Rollers	2
Acceptable Material Thickness	0.8 mm (0.03")
Cutting Force	5~250 g
Max. Cutting Speed	300 mm/sec (12ips)
Over Cut	Yes
Throughput* with SmartACT Enabled	283.4 in²/ hr (1828.8 cm²/ hr)
Repeat and Copy	Yes
Offset	0~1.0 mm (with an increase of 0.025 mm)
Memory Buffer	32 GB
Interfaces	USB 2.0 (Full Speed), SD card
Mechanical Resolution	0.05 mm
Software Resolution	0.025 mm
Distance Accuracy	±0.254 mm or ±0.1% of move, whichever is greater
Repeatability	±0.1 mm
Control Panel	LCD panel
Diameter of Blade	2.5 mm
Power Supply	AC adapter, 24V DC (1.67A)
Power Consumption	max 40 watts
Automatic-Aligning System	Completely Automatic Contour Cutting System for print to cut solution

Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Using "Sure Cuts A Lot" software to work with Mac OS.)
The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
GCC reserves the right to change the specifications at any time without notice.
GCC certified material in tracking is Avery MPI 3000.
The above listed specification values are effective only when operated with media certified by GCC.
