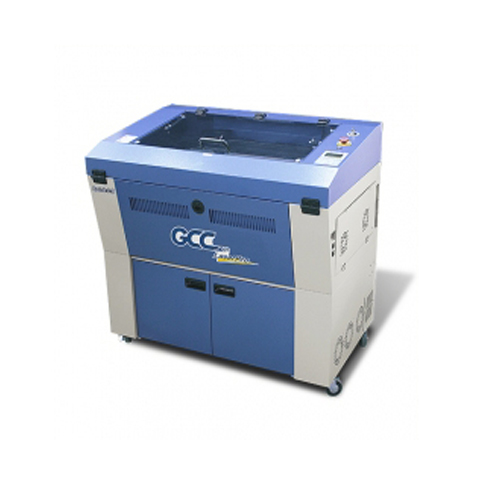

The GCC LaserPro Spirit GLS Hybrid is the flagship model of the award winning Spirit line of laser engravers. In succession to GCC LaserPro's worldwide accolades features, Spirit GLS Hybrid further upscales its capability to CO2 & Fiber Hybrid laser option in one system. Let this hybrid laser machine upgrade your business for more engraving, cutting, marking applications on organic and metal materials.
| Spirit GLS Hybrid | |||
| Work Area | 34 x 24 in. (860 x 610mm) Extendable to 38 x 24 in. (965 x 610 mm) | ||
| Max. Part Size (W x L x H) | All doors closed | 39 x 25 x 7 in. (990 x 635 x 177 mm) | |
| All doors open | 39 x ∞ x 7 in. (990 x ∞ x 177 mm) | ||
| Table Size | 40.3 x 27.7 in. (1025 x 705 mm) | ||
| Dimensions (W x L x H) | 53.7 x 34.6 x 39.7 in. (1365 x 880 x 1010 mm) | ||
| Laser Source | 10.6-μm CO2 laser: 30 to 100W | ||
| Fiber laser: 20 / 30 / 50W | |||
| Cooling | Air-cooled, Operating environment temperature 15°- 30°C (60°- 86°F) | ||
| Drive | Closed-loop DC servo control | ||
| Maximum Motor Speed | 80 IPS | ||
| Throughput* | 260.9 in²/ hr (1683 cm²/ hr) | ||
| Throughput* with SmartACT™ Enabled | 322.1 in²/ hr (2078 cm²/ hr) | ||
| Speed Control | Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job) | ||
| Power Control | Adjustable from 0~100% (Up to 16 color-linked power settings per job) | ||
| Engraving capability | 256-level gray scale image processing capability | ||
| Distance Accuracy | 0.254 mm or 0.1% of move, whichever is greater | ||
| Z-Axis Movement | Automatic | ||
| Focus Lens | Standard 3.0” | ||
| Resolution (DPI) | Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500 | ||
| Computer Interface | 10 Base-T Ethernet, Full speed 2.0 USB | ||
| Memory Buffer | 32MB standard | ||
| Compatible Operating Systems | MS Windows | ||
| Display Panel | 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus | ||
| Safety | Class I Laser Product Compliant with EN60825 Class 3R Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance |
||
| Facility Requirements | |||
| Operation Voltage | Below 80Watt, 100-240VAC, 50/60HZ Auto Switching, max. 15A 80Watt and above, 100-240VAC, 50/60HZ Auto Switching, max. 15A |
||
| Fume Extraction System | External exhaust system is required, one 4" connection on the back of the machine |
||
Nonwoven fabric photo frame by laser engraving and cutting
EPE Cutting
Double Color Sticker Application
Photo Engraving with Dithering Pattern
Packaging cutting
Twill Cutting with X-Series
Food Engraving
Embossing seal with laser engraving
Metal Engraving with LaserInk
Customized Tambourine Engraving
Engraving Product Label
Personalized Clock Application with CCD device
